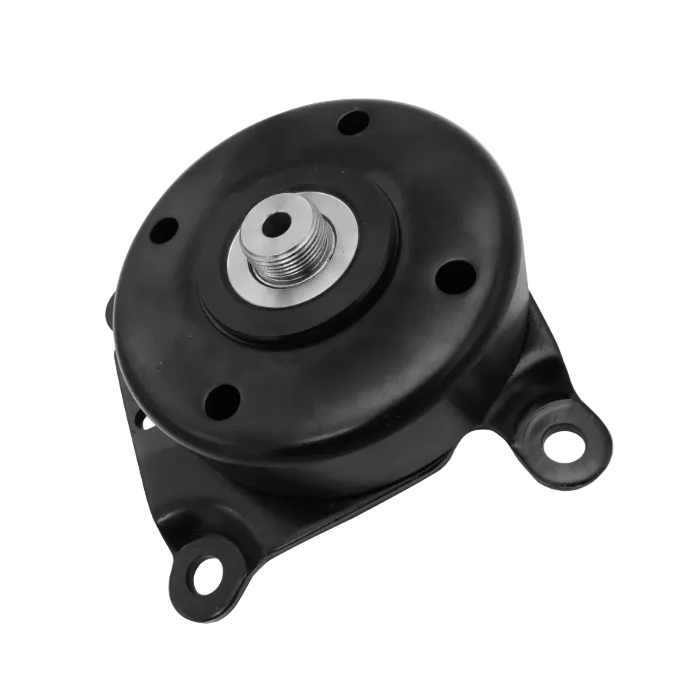

Ford Ranger, Everest & Transit – Idler Pulley (6C1Z-8678-H / 6C1Z8678H)

Direct-fit idler pulley for select Ford Ranger (PX), Everest (UA TEC 2015) and Transit (VH–VJ/VM) applications. Restores correct belt tracking and quiet operation on Duratorq accessory drives.

OE / Reference

• Primary: 6C1Z-8678-H
• Also shown as: 6C1Z8678H, 6C1Z 8678 H, 6C1Q19A216BA 6C1Q 19A216 BA

Confirmed AU Fitment

• Everest UA TEC 2015 (From 29/06/2015 – 18/06/2018)
• Ranger PX (XL-PLUS) 2014–2015 (From 01/09/2014 – 14/09/2015)
• Ranger PX 2011 – (XL-PLUS SEP 2015) (From 01/06/2015 – 18/06/2018)
• Transit VH–VJ 2000–2006 (From 01/08/2000 – 2006)
• Transit VM 2006 (From 01/03/2006 – 2014)

Notes: Some ranges overlap around mid-2015 platform updates. If unsure, send your VIN/Rego and we’ll confirm before dispatch.

Why this part

• OE-spec groove profile for stable belt tracking
• High-load sealed bearing for long service life
• Direct bolt-on replacement

Typical symptoms of a worn idler

• Chirping/whining from the front of the engine
• Belt glazing or wander
• Visible pulley wobble or rough rotation

What's in the box

• Idler pulley assembly – 6C1Z-8678-H equivalent

Need help? Message us with your VIN or Rego for a fast compatibility check.
