Timing Chain Cover / Camshaft Front Cover Gasket to suit Ford Transit VH, VJ ,VM 2.4L models 2000 - 2014*

Timing Chain Cover / Camshaft Front Cover Gasket to suit Ford Transit VH, VJ ,VM 2.4L models 2000 - 2014*

$85.00 AUD
$99.95 AUD $85.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

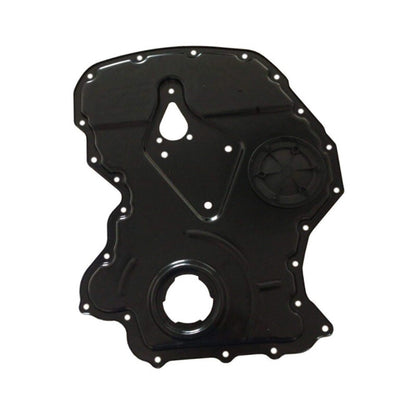

BRAND NEW TIMING CHAIN COVER

BRAND: AFTERMARKET

BRAND NEW TO SUIT PART NUMBERS:

PART NO: 3C1Q6019AB ALTERNATE PART NO: 3C1Q 6019 AB, 3C1Q-6019-AB,YC1Q6019AC, YC1Q 6019 AC, YC1Q-6019-AC, YC1Q6019AF, YC1Q 6019 AF, YC1Q-6019-AF, 3C1Q6019AA, 3C1Q 6019 AA, 3C1Q-6019-AA, 1C1O6019AB, 1C1O 6019 AB, 1C1O-6019-AB, 1738863, 1096223, 1102608, 1230870, 1496221 OTHER BRAND PART NO: LAND ROVER LR004403 CONDITION: New If you are unsure about which Part you need, contact our friendly sales team. Please have your VIN or registration number ready and we will be able find the right part for your vehicle.   DESCRIPTION With Plastic opening cover   IT IS IMPORTANT TO INSTALL THE OIL SEAL INTO THE TIMING COVER PRIOR TO FITTING THE COVER. APPLY A SMALL AMOUNT OF SEALANT TO THE REAR OF THE SEAL OR COVER & INSTALL THE SEAL INTO THE COVER. NOW APPLY SEALANT TO EITHER THE COVER OR THE ENGINE MATING SURFACES. APPLY A SMALL AMOUNT OF LUBRICANT TO THE CRANKSHAFT TO HELP SEAL SLIDE OVER CRANKSHAFT. THE SEAL HAS A PLASTIC INSTALLER TO HELP CENRALIZE THE SEAL ONTO THE CRANK. CAFEFULLY ALIGN & PUSH SEAL/COVER INTO PLACE, ( THE GUIDE WILL DROP OUT ) NOW HOLDING IT IN PLACE GET SOME BOLTS IN TO SECURE THE COVER, SO IT DOES NOT MOVE. IF A SEAL LEAKS, IT IS MORE THAN LIKELY THE SEAL IS NOT CORRECTLY FITTED, THAN A FAULTY SEAL, ALSO YOU WILL HAVE TO REMOVE THE COVER TO REPLACE THE SEAL, SO TAKE THE TIME TO GET IT RIGHT FIRST TIME.   *Note– Use OEM part number sourced through OEM, the part number off the original part or your vehicle identification number (VIN) to confirm the part is correct for your vehicle prior to purchase. Date codes should be used as a guide only, Part drawings are for reference only, actual part my vary and non highlighted items are not included   FITS VEHICLES
Body Produced KW HP CCM
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.4 TDCi 2004-03 - 2006-05 101 137 2402
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.4 TDE 2001-07 - 2006-05 92 125 2402
FORD TRANSIT Box (FA_ _) 2.4 TDE 2001-07 - 2006-05 92 125 2402
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.4 TDE 2004-03 - 2006-05 85 115 2402
FORD TRANSIT Bus 2.4 TDCi 2006-04 - ... 103 140 2402
FORD TRANSIT Bus 2.4 TDCi 2006-04 - 2014-08 74 100 2402
FORD TRANSIT Box 2.4 TDCi 2006-04 - 2014-08 74 100 2402
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 TDCi 2004-03 - 2006-05 101 137 2402
FORD TRANSIT Box (FA_ _) 2.4 TDCi 2004-03 - 2006-05 101 137 2402
FORD TRANSIT Box (FA_ _) 2.4 DI [RWD] (FAA_, FAB_, FAC_, FAD_) 2000-01 - 2006-05 88 120 2402
FORD TRANSIT Platform/Chassis 2.4 TDCi 2006-04 - 2014-08 85 115 2402
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.4 DI (F_A_, F_B_, F_C_, F_D_) 2000-01 - 2006-05 66 90 2402
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 DI [RWD] (F_B_, F_C_, F_A_) 2000-01 - 2006-05 88 120 2402
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 DI [RWD] (F_B_, F_C_) 2000-01 - 2006-05 55 75 2402
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 TDE (F_C_, F_B_, F_A_) 2001-07 - 2006-05 92 125 2402
FORD TRANSIT Box (FA_ _) 2.4 TDE 2004-03 - 2006-05 85 115 2402
FORD TRANSIT Box (FA_ _) 2.0 TDCi 2002-08 - 2006-05 92 125 2402
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.4 DI (F_A_, F_B_, F_C_, F_D_) 2000-01 - 2006-05 88 120 2402
FORD TRANSIT Box 2.4 TDCi 4x4 2006-11 - 2014-08 103 140 2402
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.4 DI (F_A_, F_B_, F_C_, F_D_) 2000-01 - 2006-05 55 75 2402
LTI TX 2.4 TDi 2002-10 - ... 66 90 2402
FORD TRANSIT Platform/Chassis 2.4 TDCi 4x4 2006-11 - 2014-08 103 140 2402
FORD TRANSIT Bus 2.4 TDCi 2006-04 - 2014-08 85 115 2402
FORD TRANSIT Box (FA_ _) 2.4 DI [RWD] (FAA_, FAB_, FAC_, FAD_) 2000-01 - 2006-05 55 75 2402
FORD TRANSIT Platform/Chassis 2.4 TDCi 2006-04 - 2014-08 74 100 2402
FORD TRANSIT Platform/Chassis 2.4 TDCi 2006-04 - 2014-08 103 140 2402
FORD TRANSIT Box 2.4 TDCi 2006-04 - 2014-08 85 115 2402
LANDROVER DEFENDER Pickup (LD_) 2.4 Td4 2007-05 - 2016-02 90 122 2402
FORD TRANSIT Box (FA_ _) 2.4 DI (FAA_, FAB_, FAC_, FAD_) 2000-01 - 2006-05 66 90 2402
FORD TRANSIT Box 2.4 TDCi 2006-04 - 2014-08 103 140 2402
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 DI (F_B_, F_C_, F_A_) 2000-01 - 2006-05 66 90 2402
FORD TRANSIT Bus 2.4 TDCi 4x4 2006-11 - 2014-08 103 140 2402
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 TDE 2004-03 - 2006-05 85 115 2402
