CM5T15520CA Reverse Light Switch Ford Ranger PX & Everest

FORD RANGER, EVEREST & TRANSIT REVERSE LIGHT SWITCH

Brand-new reversing light switch to suit selected Ford Ranger PX, Everest and Ford Transit models fitted with a manual transmission.

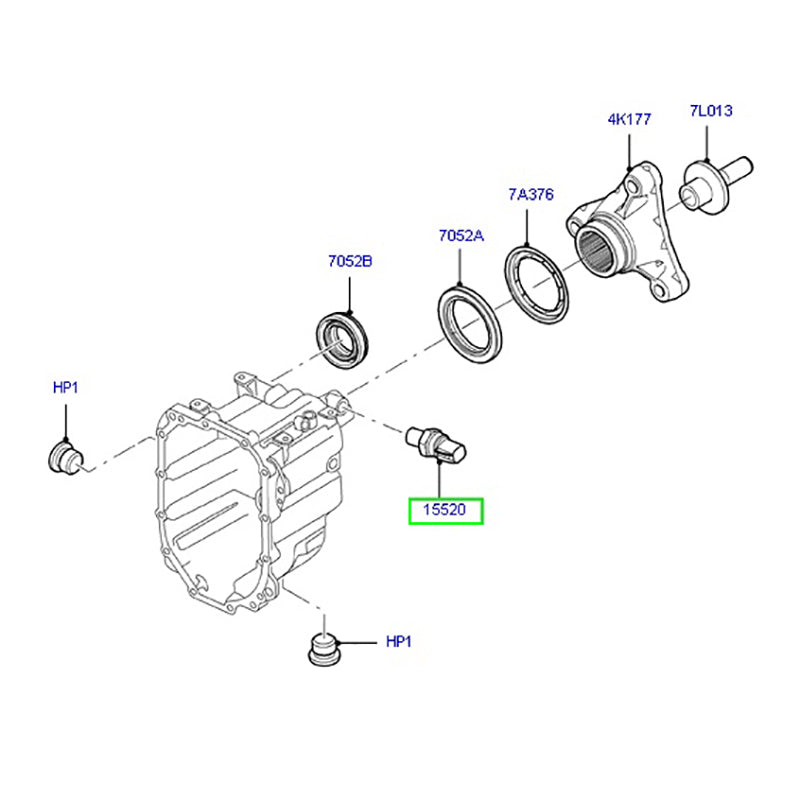

This gearbox-mounted switch activates the reversing lights when reverse gear is selected. It may also be described as a reverse lamp switch, reversing switch, reverse gear switch or back-up light switch.

Includes a two-year warranty.

Ford Ranger Applications

• Ford Ranger PX – selected models from 2011 onward
• Ford Ranger PX XL-Plus – selected 2014–2015 models
• Ford Ranger PX, PX2 and PX3 – selected manual-transmission models
• Transmission: Five-speed or six-speed manual, depending on vehicle

Ford Everest Applications

• Ford Everest UA – selected models from 2015 onward
• Transmission: Six-speed manual
• Applicable production: From approximately 29 June 2015

Ford Transit Applications

• Ford Transit VH and VJ – selected models from approximately 19 October 2001 to 2006
• Ford Transit VM – selected six-speed manual models produced from approximately 17 April 2006 to 25 September 2011
• Ford Transit VO Cargo and Bus – selected five- and six-speed manual models from approximately 27 January 2014 onward

Important: This switch is only suitable for applicable manual-transmission vehicles. It is not suitable for every Ranger, Everest or Transit.

Primary Part Number

CM5T-15520-CA
CM5T15520CA
CM5T 15520 CA

Alternate and Superseded Part Numbers

4C1T-15520-AB
4C1T15520AB
4C1T 15520 AB
4C1T-15520-AA
4C1T15520AA
4C1T 15520 AA
1805256
1 805 256
1461586
1 461 586
4526441
4 526 441

Product Specifications

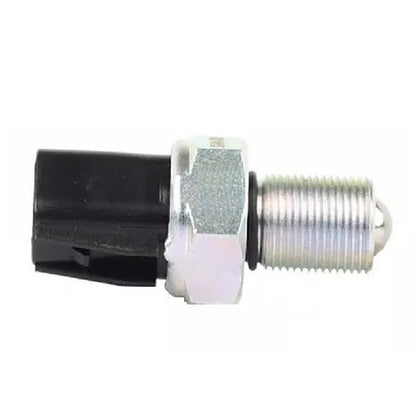

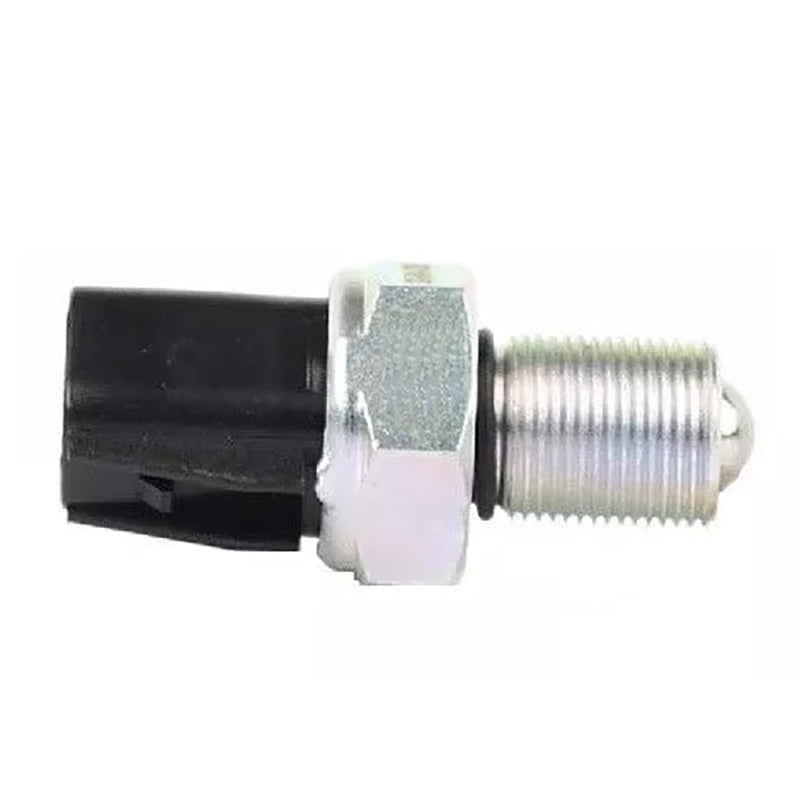

• Product: Reverse light switch assembly
• Thread: M14 x 1
• Spanner size: 22mm
• Connector: Two-pin electrical connector
• Operating type: Mechanical
• Cable: Not included
• Condition: Brand new
• Warranty: Two years

Signs of a Faulty Reverse Light Switch

• Reverse lights do not illuminate when reverse gear is selected
• Reverse lights operate intermittently
• Reverse lights remain illuminated outside reverse gear
• Lights only operate when the gear lever is moved or held in position

If your Ford Ranger, Everest or Transit has stopped activating its reversing lights, the gearbox-mounted reverse light switch or its associated wiring may require inspection.

Confirm Compatibility Before Ordering

Ford used different switches across automatic and manual transmissions. Compare the part number, thread and two-pin connector with the switch removed from your vehicle.

If you are unsure, contact our team with your registration number or VIN and we can help confirm whether this reverse light switch suits your vehicle.

Why Choose Ford Transit Parts?

• Huge range of Ford Ranger, Everest and Transit parts
• Genuine and quality aftermarket Ford parts
• Quick dispatch
• Parts matching for your peace of mind
• Cannot find the part you need? Contact our team today

Fitment note: Use the OEM part number, the number on the original switch or your VIN to confirm compatibility before purchase. Production dates should be used as a guide only, as fitment may vary between model, badge and transmission combinations.
