Power Steering Pump to suit 2000–2014 Ford Transit VH VJ VM 2.4L RWD 6C113A696AJ / 1569693

Brand-new hydraulic power steering pump to suit selected 2000–2014 Ford Transit VH, VJ and VM models fitted with the 2.4L Duratorq turbo-diesel engine and rear-wheel drive.

This replacement power steering pump suits Ford reference number 6C11-3A696-AJ, also written as 6C113A696AJ, along with the additional Ford numbers listed below.

Please note: Ford Transit power steering pumps vary according to engine, build date and drivetrain. This pump is intended for selected 2.4L diesel RWD models only. If you are unsure, please contact us with your VIN or registration number before ordering.

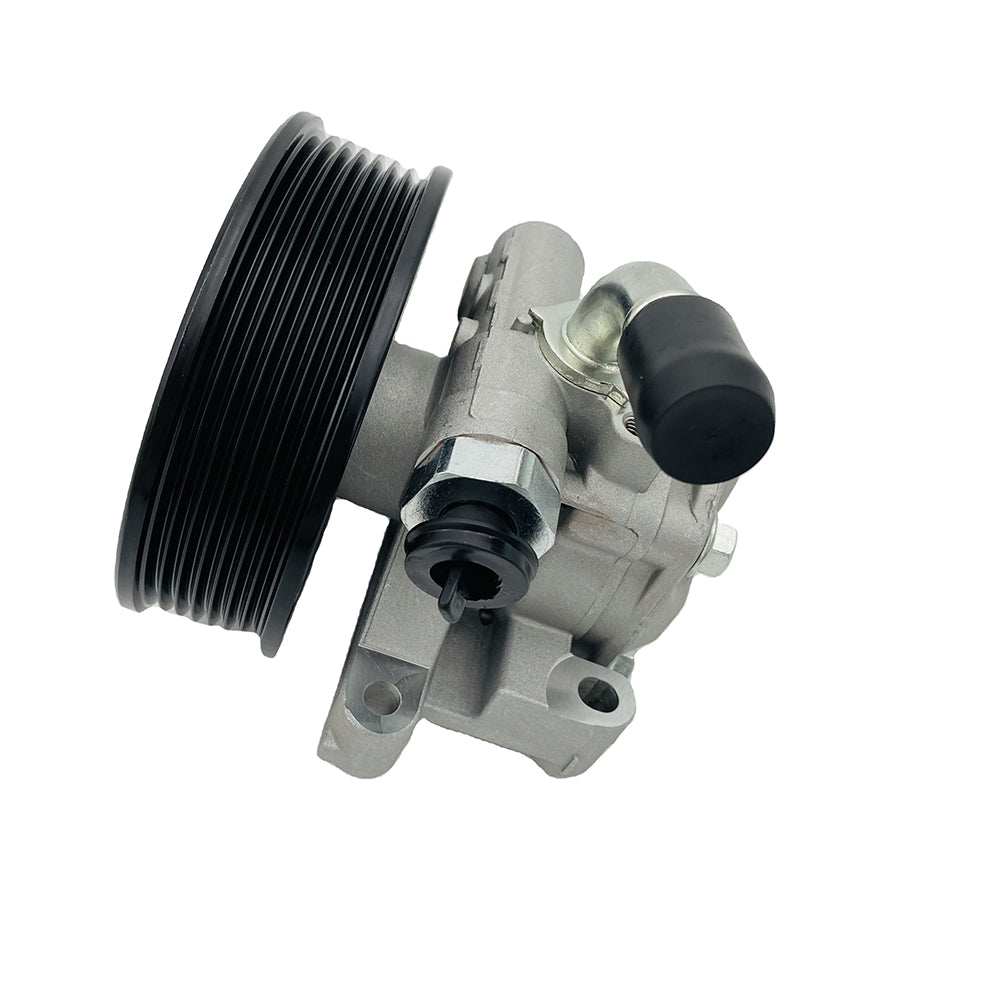

Ford Transit 2.4L Power Steering Pump

• Product: Hydraulic power steering pump
• Primary Ford reference: 6C11-3A696-AJ
• Engine: 2.4L Duratorq turbo diesel
• Drivetrain: Rear-wheel drive – RWD
• Operating type: Hydraulic
• Pulley type: V-ribbed belt pulley
• Number of pulley ribs: 7
• Pulley diameter: Approximately 125mm
• Condition: Brand new

Vehicle Applications

This power steering pump is used in selected:

• Ford Transit VH 2.4L diesel RWD
• Ford Transit VJ 2.4L diesel RWD
• Ford Transit VM 2.4L diesel RWD
• Selected Ford Transit vans, cab chassis, buses and motorhome-based vehicles

This pump is not suitable for every Ford Transit built between 2000 and 2014. It should not be selected by year alone. Confirm the Ford number from the original pump or contact us with the vehicle VIN.

Symptoms of a Failing Ford Transit Power Steering Pump

A worn or failing power steering pump may cause one or more of the following symptoms:

• Whining, groaning or humming noises when turning the steering wheel
• Steering becoming heavy, especially at low speed or while parking
• Intermittent loss of power steering assistance
• Steering assistance that changes as engine speed increases
• Power steering fluid leaking around the pump body or shaft
• Foaming or aerated fluid in the power steering reservoir
• A burning smell caused by power steering fluid leaking onto hot components
• Pulley wobble, bearing noise or excessive movement at the pump shaft
• Contaminated, dark or metallic-looking power steering fluid

Heavy steering or pump noise does not always mean the pump itself has failed. Low fluid, an air leak, a slipping auxiliary belt, a blocked hose, a leaking steering rack or contamination within the hydraulic system can produce similar symptoms. The complete power steering system should be inspected before replacing the pump.

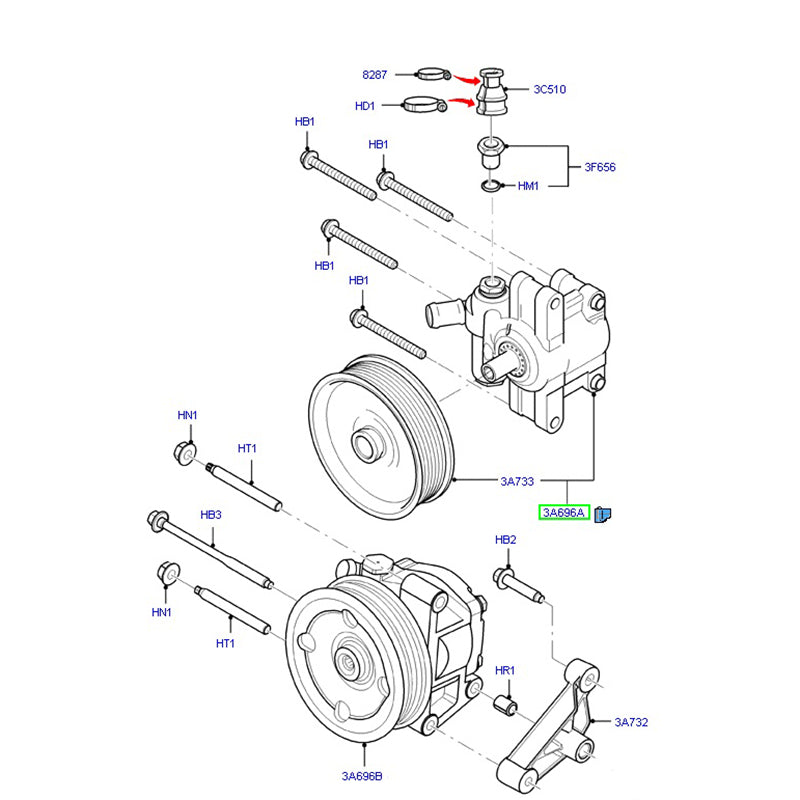

Ford Power Steering Pump Part Numbers

This pump may replace or cross-reference the following Ford engineering and service numbers:

• 6C11-3A696-AJ / 6C113A696AJ
• RM6C11-3A696-AJ / RM6C113A696AJ
• 1C1C-3A696-AA / 1C1C3A696AA
• 1C1C-3A696-AB / 1C1C3A696AB
• 1C1C-3A696-AC / 1C1C3A696AC
• 1C1C-3A696-AD / 1C1C3A696AD
• 1C1C-3A696-AE / 1C1C3A696AE
• 1C1C-3A674-BA / 1C1C3A674BA
• YC1C-3A674-DA / YC1C3A674DA
• YC1C-3A674-DB / YC1C3A674DB
• YC1C-3A674-DC / YC1C3A674DC
• YC1C-3A696-AA / YC1C3A696AA
• YC1C-3A696-AB / YC1C3A696AB

Ford FINIS and Service Numbers

Potential Ford service-number references include:

1370729, 1379500, 1406346, 1473440, 1495689, 1523464, 1569693, 1721917, 4042028, 4047464, 4055852, 4059383, 4123761, 4376991, 4386951, 4511901, 4691863, 4796969 and 4797515.

Additional aftermarket reference: 3301058

Important Installation Information

• Compare the replacement pump, pulley and hose connections with the original unit before installation.
• Inspect the auxiliary drive belt, tensioner and pulleys for wear or contamination.
• Check the pressure and return hoses for leaks, restrictions or internal deterioration.
• Flush contaminated fluid from the system before fitting the replacement pump.
• Use only the correct power steering fluid specified for the vehicle.
• Bleed the hydraulic system correctly after installation to remove trapped air.
• Do not allow the new pump to operate without fluid.

Failure to flush contaminated fluid or repair an existing hose, steering-rack or belt-system fault may damage the replacement pump and cause continuing noise or heavy steering.

Frequently Asked Questions

Does this pump suit all Ford Transit 2.4L diesel models?

No. This pump is designed for selected 2.4L diesel rear-wheel-drive Ford Transit models. Different pumps may be used depending on the vehicle’s build date, engine and drivetrain.

Will this fit a front-wheel-drive Ford Transit?

This listing is for selected rear-wheel-drive vehicles. Do not order it for an FWD Transit without first confirming the original Ford pump number.

Why is my Ford Transit power steering making a whining noise?

Common causes include low power steering fluid, air entering the hydraulic system, a fluid leak, contaminated fluid, a slipping drive belt or wear inside the power steering pump. The system should be checked for leaks and correctly bled before the pump is condemned.

How can I confirm this is the correct pump?

Check the engineering number printed or stamped on the original pump. The main reference for this product is 6C11-3A696-AJ. Alternatively, contact our team with your VIN or registration number and we can assist with identification.

Need Help Confirming Fitment?

If you are unsure whether this power steering pump suits your Ford Transit, please contact our friendly sales team before ordering. Have your VIN or registration number ready so we can help identify the correct part.

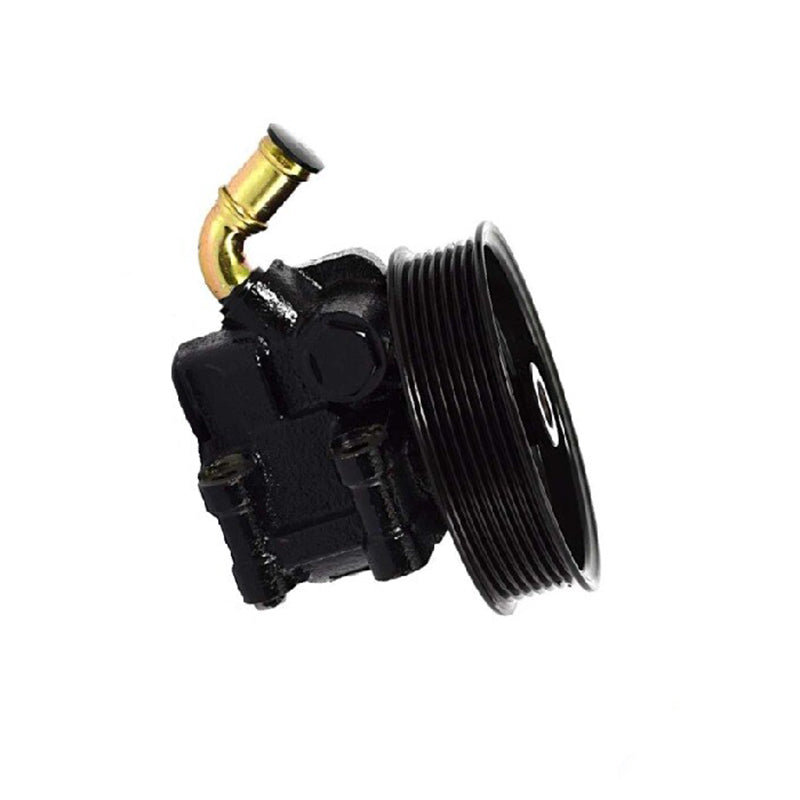

Part numbers are supplied for identification and cross-reference purposes. Use the number from the original component, an OEM catalogue lookup or the vehicle VIN to confirm compatibility. Model years should be treated as a guide only. Product appearance may vary slightly from catalogue images.
