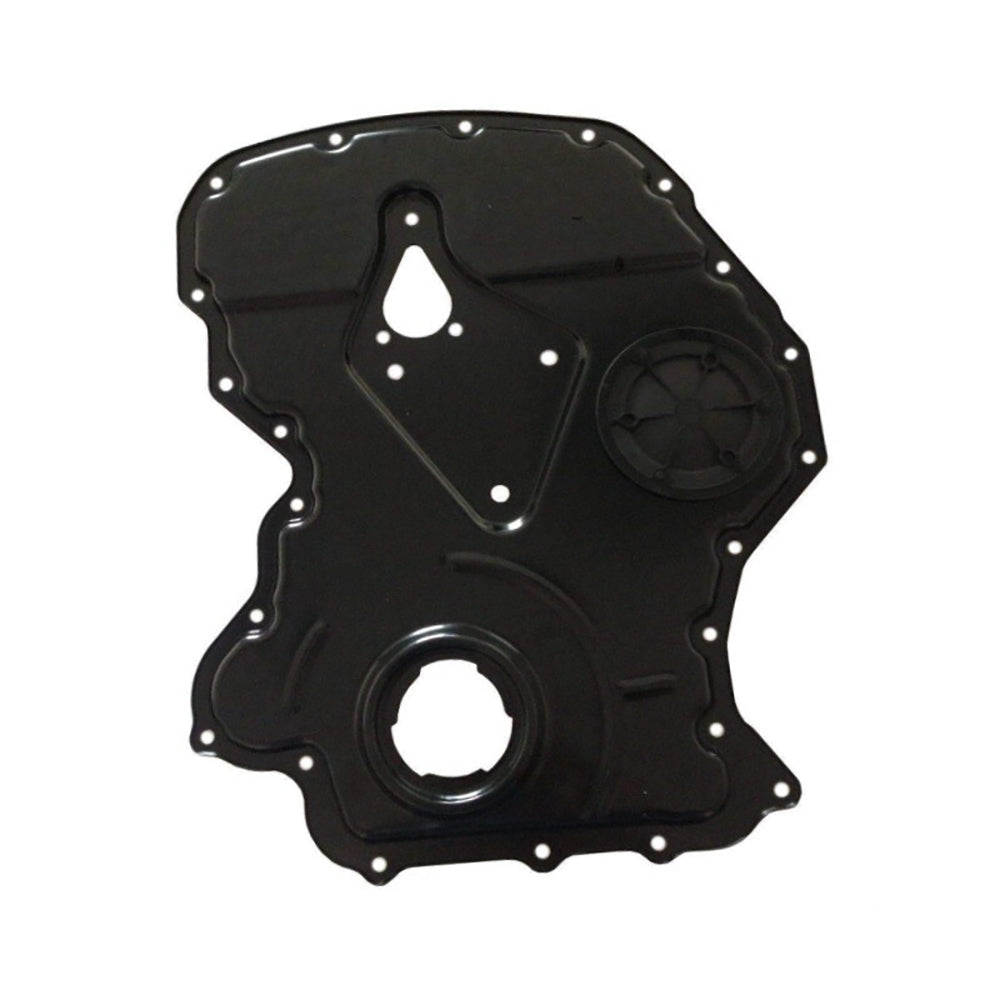

Genuine Timing Chain Cover to suit Ford Transit VH, VJ ,VM 2.4L 3C1Q6019AB / 1738863

BRAND NEW GENUINE TIMING CHAIN COVER

BRAND: Genuine / Ford

BRAND NEW TO SUIT PART NUMBERS:

PART NO: 3C1Q6019AB

ALTERNATE PART NO: 3C1Q 6019 AB, 3C1Q-6019-AB,YC1Q6019AC, YC1Q 6019 AC, YC1Q-6019-AC, YC1Q6019AF, YC1Q 6019 AF, YC1Q-6019-AF, 3C1Q6019AA, 3C1Q 6019 AA, 3C1Q-6019-AA, 1C1O6019AB, 1C1O 6019 AB, 1C1O-6019-AB, 1738863, 1096223, 1102608, 1230870, 1496221

OTHER BRAND PART NO: LAND ROVER LR004403

CONDITION: New If you are unsure about which Part you need, contact our friendly sales team. Please have your VIN or registration number ready and we will be able find the right part for your vehicle.

DESCRIPTION TIMING COVER 2.4 with Plastic opening cover

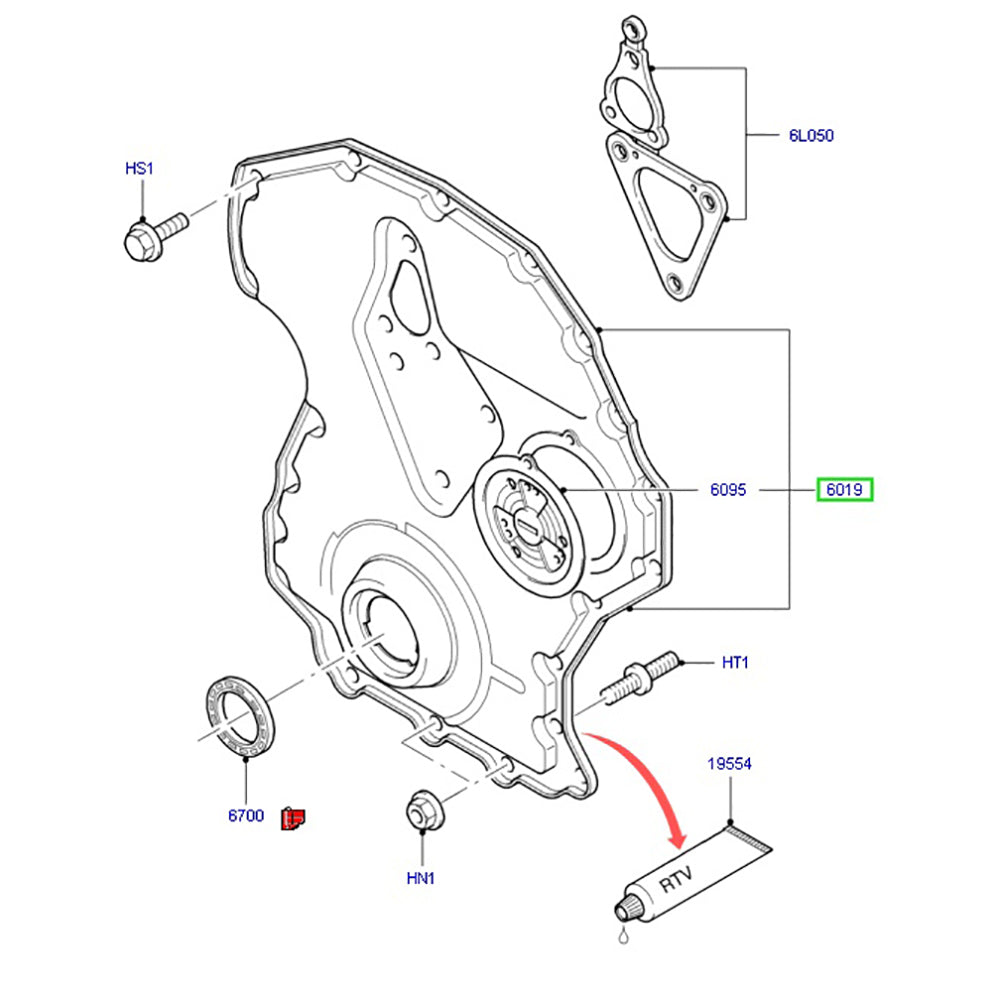

IT IS IMPORTANT TO INSTALL THE OIL SEAL INTO THE TIMING COVER PRIOR TO FITTING THE COVER. APPLY A SMALL AMOUNT OF SEALANT TO THE REAR OF THE SEAL OR COVER & INSTALL THE SEAL INTO THE COVER. NOW APPLY SEALANT TO EITHER THE COVER OR THE ENGINE MATING SURFACES. APPLY A SMALL AMOUNT OF LUBRICANT TO THE CRANKSHAFT TO HELP SEAL SLIDE OVER CRANKSHAFT. THE SEAL HAS A PLASTIC INSTALLER TO HELP CENRALIZE THE SEAL ONTO THE CRANK. CAFEFULLY ALIGN & PUSH SEAL/COVER INTO PLACE, ( THE GUIDE WILL DROP OUT ) NOW HOLDING IT IN PLACE GET SOME BOLTS IN TO SECURE THE COVER, SO IT DOES NOT MOVE. IF A SEAL LEAKS, IT IS MORE THAN LIKELY THE SEAL IS NOT CORRECTLY FITTED, THAN A FAULTY SEAL, ALSO YOU WILL HAVE TO REMOVE THE COVER TO REPLACE THE SEAL, SO TAKE THE TIME TO GET IT RIGHT FIRST TIME.   *Note– Use OEM part number sourced through OEM, the part number off the original part or your vehicle identification number (VIN) to confirm the part is correct for your vehicle prior to purchase. Date codes should be used as a guide only, Part drawings are for reference only, actual part my vary and non highlighted items are not included   FITS VEHICLES

Body	Produced	KW	HP	CCM
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.4 TDCi	2004-03 - 2006-05	101	137	2402
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.4 TDE	2001-07 - 2006-05	92	125	2402
FORD TRANSIT Box (FA_ _) 2.4 TDE	2001-07 - 2006-05	92	125	2402
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.4 TDE	2004-03 - 2006-05	85	115	2402
FORD TRANSIT Bus 2.4 TDCi	2006-04 - ...	103	140	2402
FORD TRANSIT Bus 2.4 TDCi	2006-04 - 2014-08	74	100	2402
FORD TRANSIT Box 2.4 TDCi	2006-04 - 2014-08	74	100	2402
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 TDCi	2004-03 - 2006-05	101	137	2402
FORD TRANSIT Box (FA_ _) 2.4 TDCi	2004-03 - 2006-05	101	137	2402
FORD TRANSIT Box (FA_ _) 2.4 DI [RWD] (FAA_, FAB_, FAC_, FAD_)	2000-01 - 2006-05	88	120	2402
FORD TRANSIT Platform/Chassis 2.4 TDCi	2006-04 - 2014-08	85	115	2402
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.4 DI (F_A_, F_B_, F_C_, F_D_)	2000-01 - 2006-05	66	90	2402
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 DI [RWD] (F_B_, F_C_, F_A_)	2000-01 - 2006-05	88	120	2402
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 DI [RWD] (F_B_, F_C_)	2000-01 - 2006-05	55	75	2402
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 TDE (F_C_, F_B_, F_A_)	2001-07 - 2006-05	92	125	2402
FORD TRANSIT Box (FA_ _) 2.4 TDE	2004-03 - 2006-05	85	115	2402
FORD TRANSIT Box (FA_ _) 2.0 TDCi	2002-08 - 2006-05	92	125	2402
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.4 DI (F_A_, F_B_, F_C_, F_D_)	2000-01 - 2006-05	88	120	2402
FORD TRANSIT Box 2.4 TDCi 4x4	2006-11 - 2014-08	103	140	2402
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.4 DI (F_A_, F_B_, F_C_, F_D_)	2000-01 - 2006-05	55	75	2402
LTI TX 2.4 TDi	2002-10 - ...	66	90	2402
FORD TRANSIT Platform/Chassis 2.4 TDCi 4x4	2006-11 - 2014-08	103	140	2402
FORD TRANSIT Bus 2.4 TDCi	2006-04 - 2014-08	85	115	2402
FORD TRANSIT Box (FA_ _) 2.4 DI [RWD] (FAA_, FAB_, FAC_, FAD_)	2000-01 - 2006-05	55	75	2402
FORD TRANSIT Platform/Chassis 2.4 TDCi	2006-04 - 2014-08	74	100	2402
FORD TRANSIT Platform/Chassis 2.4 TDCi	2006-04 - 2014-08	103	140	2402
FORD TRANSIT Box 2.4 TDCi	2006-04 - 2014-08	85	115	2402
LANDROVER DEFENDER Pickup (LD_) 2.4 Td4	2007-05 - 2016-02	90	122	2402
FORD TRANSIT Box (FA_ _) 2.4 DI (FAA_, FAB_, FAC_, FAD_)	2000-01 - 2006-05	66	90	2402
FORD TRANSIT Box 2.4 TDCi	2006-04 - 2014-08	103	140	2402
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 DI (F_B_, F_C_, F_A_)	2000-01 - 2006-05	66	90	2402
FORD TRANSIT Bus 2.4 TDCi 4x4	2006-11 - 2014-08	103	140	2402
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 TDE	2004-03 - 2006-05	85	115	2402
