Injector Leak-Off Return Line Clips 6pc Kit – Ford Ranger PX Everest Territory Transit

Injector Leak-Off Return Line Clips 6pc Kit – Ford Ranger PX Everest Territory Transit

Regular price $59.60 AUD
Regular price Sale price $59.60 AUD
Sale Need this part? Email or Call our team
Taxes included. Shipping calculated at checkout.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Diesel Injector Leak-Off / Fuel Return Line Clips – 6 Piece Kit

Replacement diesel injector leak-off / fuel return line retaining clips for selected Ford Ranger, Everest, Territory, Transit and Mazda BT-50 diesel vehicles.

These retaining clips secure the injector fuel return (leak-off) line connections. They are ideal for replacing broken, damaged, missing or lost clips during injector replacement, fuel system repairs or leak-off line servicing.

Supplied as a 6-piece kit – use the clips required for your vehicle and keep the remaining clips as spares.

Vehicle Applications

  • Ford Ranger PX / PX2 / PX3 (2011–2021) – 2.2L and 3.2L TDCi diesel
  • Ford Everest UA (2015–2021) – 2.2L and 3.2L TDCi diesel
  • Mazda BT-50 UP / UR (2011–2021) – 2.2L and 3.2L diesel
  • Ford Territory SZ / SZ Mk2 (2011–2016) – 2.7L TDV6 diesel
  • Ford Transit VM (2006–2014) – Selected diesel models
  • Ford Transit VO (2014 onwards) – Selected diesel models
  • Ford Transit Custom VN (2012 onwards) – Selected diesel models

Additional applications: This retaining clip design may also be suitable for selected Land Rover and Range Rover TDV6 and TDV8 diesel injector return line systems.

Note: Compatibility depends on the injector and fuel return line configuration. Please compare your existing clip or confirm the relevant part number before ordering.

Ford Genuine OE & Cross-Reference Part Numbers

These injector leak-off retaining clips are associated with the following Ford genuine service and engineering references:

  • 4S7Z16K262A
  • 4S7Z-16K262-A
  • 4S7Q9F524AB
  • 4S7Q-9F524-AB
  • 1801660
  • U20213G35

Aftermarket part reference: X11-800-001-002Z

Additional Manufacturer Cross-References

The following part numbers are also associated with injector leak-off retaining clips or related fuel return line components. Please verify compatibility before using these references to identify a replacement.

  • Citroën: 1579KK, 1982A4
  • Peugeot: 1579KK, 1982A4
  • Renault: 7701477442
  • Dacia: 7701477442
  • Nissan: 7701477442
  • Volkswagen / VAG: 03L130447
  • Audi: 03L130447
  • Seat: 03L130447
  • Skoda: 03L130447
  • Cupra: 03L130447
  • Porsche: 03L130447

Product Details

  • Product: Diesel injector leak-off / return line retaining clips
  • Quantity: 6 clips per kit
  • Condition: Brand New
  • Part Number: X11-800-001-002Z
  • Ford Reference: 4S7Z16K262A / 4S7Q9F524AB
  • Application: Diesel injector fuel return / leak-off line connections

What's Included?

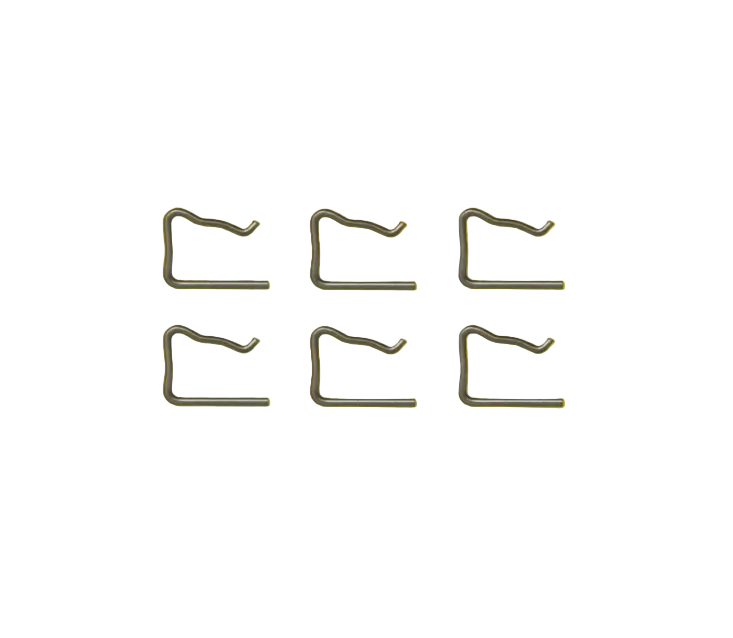

6 x Diesel Injector Leak-Off / Fuel Return Line Retaining Clips

The six-piece kit provides sufficient clips for a six-cylinder application, with spare clips available when servicing four- or five-cylinder diesel engines.

When Should Injector Leak-Off Clips Be Replaced?

Injector return line clips can become damaged, bent or lost when removing fuel leak-off pipes during maintenance. A damaged or incorrectly secured clip may prevent the fuel return line connector from locking correctly onto the injector.

Replacing damaged retaining clips helps ensure the injector leak-off line connections are properly secured.

Check Compatibility Before Ordering

These clips are intended for selected diesel injector fuel return line systems. Different injector manufacturers and fuel return line designs may use different retaining clips, even within the same vehicle model.

Please compare your existing clip and confirm the applicable OE part number before purchasing.

If you are unsure whether these clips suit your Ford Ranger, Everest, Territory, Transit or Mazda BT-50, contact Ford Transit Parts with your VIN or registration number and we can assist with identifying the correct part.
