Ford Ranger PX / Mazda BT-50 3.2L P5AT Fuel Injector Pipe Line Set 2011–2021

Genuine Ford Ranger PX / Everest / Mazda BT-50 3.2L Fuel Injector Pipe Set

Complete genuine Ford high-pressure diesel injector fuel line set to suit Ford Ranger PX, PX2, PX3 and Everest UA models fitted with the 3.2L five-cylinder Duratorq turbo diesel engine. Also suitable for compatible Mazda BT-50 3.2L P5AT diesel models.

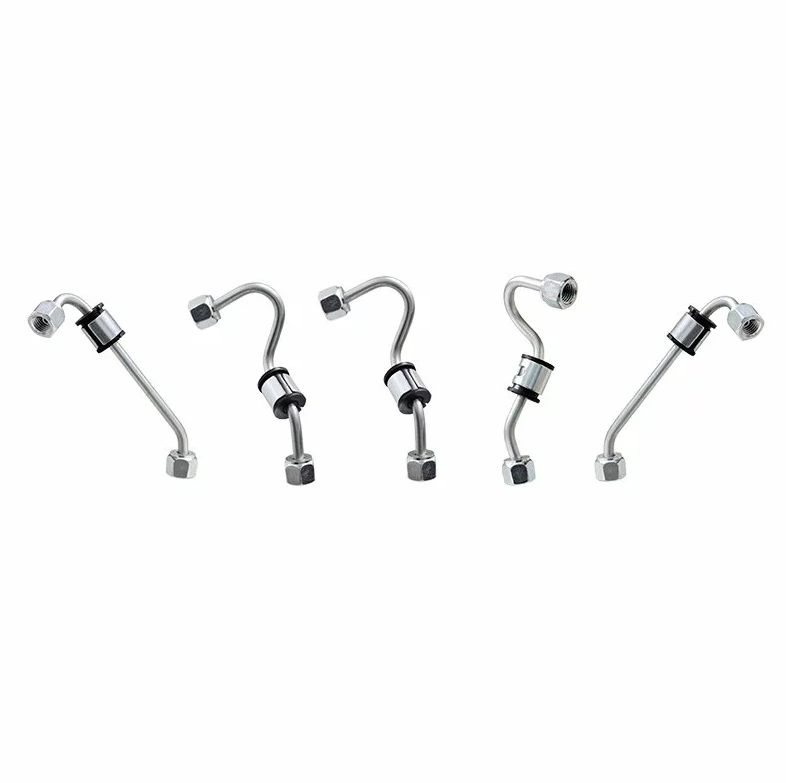

This complete five-piece injector pipe kit includes the individual high-pressure fuel lines connecting the common rail to each fuel injector.

Manufactured to original Ford specifications, these genuine replacement fuel pipes are ideal for diesel injector replacement, common rail fuel system servicing, cylinder head repairs and engine rebuilds.

Vehicle Compatibility

• Ford Ranger PX1 3.2L TDCi Diesel – 2011–2015
• Ford Ranger PX2 3.2L TDCi Diesel – 2015–2018
• Ford Ranger PX3 3.2L TDCi Diesel – 2018–2022
• Ford Everest UA 3.2L TDCi Diesel – 2015–2022
• Mazda BT-50 UP 3.2L P5AT Diesel – 2011–2015
• Mazda BT-50 UR 3.2L P5AT Diesel – 2015–2020

Engine: 3.2L five-cylinder Duratorq / P5AT common rail turbo diesel.

Note: Compatibility depends on the vehicle's engine and production specifications. VIN confirmation is recommended, particularly for Mazda BT-50 applications.

Genuine Ford OEM Part Numbers – Complete Set

• BK3Z-9324-A / BK3Z9324A – Qty 1 – Injector pipe No. 1
• BB3Z-9324-A / BB3Z9324A – Qty 1 – Injector pipe No. 2
• BB3Z-9324-B / BB3Z9324B – Qty 2 – Injector pipes No. 3 and 4
• BB3Z-9324-C / BB3Z9324C – Qty 1 – Injector pipe No. 5

Kit Contents: Five genuine Ford high-pressure injector fuel pipes, providing a complete replacement set for the 3.2L five-cylinder engine.

Additional Mazda BT-50 Injector Pipe References

The following Mazda part numbers are associated with 3.2L P5AT injector fuel pipe applications:

• UH02-42-514A / UH0242514A
• U207-42-511 / U20742511
• U209-42-511 / U20942511
• U211-42-511 / U21142511

These Mazda references are provided for parts identification and cross-reference searching. Individual equivalence and fitment should be confirmed against the vehicle VIN before ordering.

Product Features

• Genuine Ford original equipment replacement parts
• Complete five-piece high-pressure diesel injector pipe set
• Suitable for 3.2L five-cylinder common rail diesel engines
• Correctly formed rigid steel fuel injector lines
• Designed for accurate fitment and high-pressure fuel delivery
• Ideal for injector replacement and fuel system servicing
• Includes all five injector-to-common-rail fuel lines

When Should Injector Fuel Pipes Be Replaced?

High-pressure diesel fuel injector pipes operate under extremely high pressure and require accurate sealing at each connection.

Replacement may be necessary when:

• Removing or replacing diesel fuel injectors
• Repairing fuel leaks at injector pipe connections
• Carrying out common rail fuel system repairs
• Removing or replacing the cylinder head
• Repairing damaged, corroded or distorted injector lines
• Performing major engine repairs or rebuilds

Always follow the vehicle manufacturer's service procedures regarding replacement of previously removed high-pressure fuel lines.

Important Installation Information

High-pressure diesel injector pipes must be fitted using the correct manufacturer's installation procedures and tightening specifications. Incorrect installation can result in fuel leakage or damage to fuel system components.

Professional installation by a qualified diesel mechanic is recommended.

Need Help Confirming Fitment?

Not sure if this complete injector fuel pipe set suits your Ford Ranger, Ford Everest or Mazda BT-50?

Contact Ford Transit Parts with your VIN or vehicle details and our team can assist with confirming the correct replacement parts.

Australia-wide delivery available.
